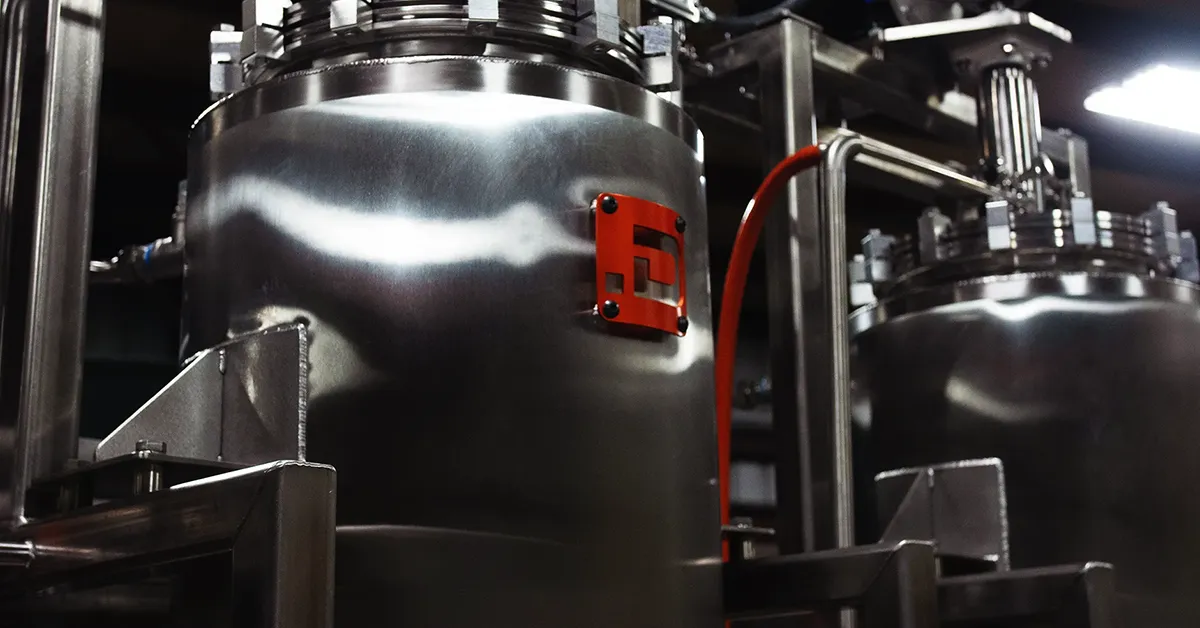

Our distillation systems excel in eliminating persistent impurities, creating very potent and uniform final products.
Continue readingDistillation

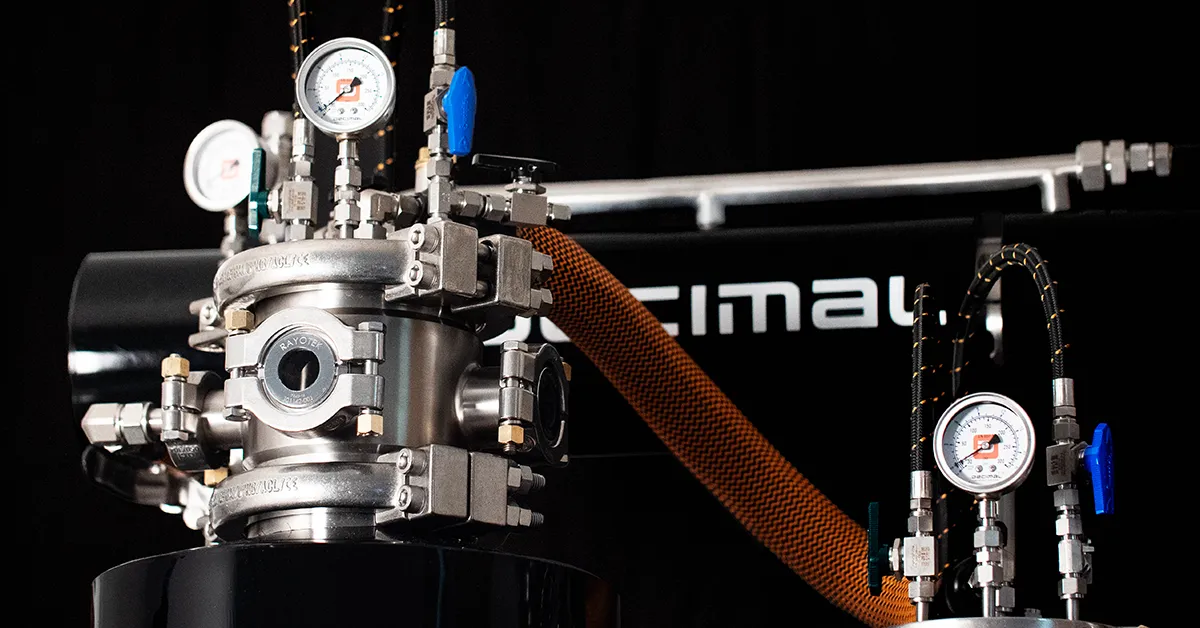

Hydrocarbon Extraction
Hydrocarbon extraction offers distinct advantages for obtaining THC extracts, catering to both efficiency and product quality.
Continue reading5.HX Hydrocarbon Extractor
CRAFT – 15 LBS. PER RUN
Continue reading15.HX Hydrocarbon Extractor
PROFESSIONAL – 15 LBS. PER RUN
Continue reading40.HX Hydrocarbon Extractor
INDUSTRIAL – 40 LBS. PER RUN
Continue reading20.EX Ethanol Extractor
20.EX
Ethanol CENTRIFUGE
Extractor
CRAFT SCALE
HEMP OR CANNABIS PROCESSING
AUTOMATEDEXTRACTION PERFECTED
Introducing the 20.EX – your go-to closed-loop, ethanol centrifuge extractor that’s ready to tackle 1,500 lbs. of biomass in just 24 hours. A top-notch centrifuge with a C1D1 rating and a umbilical connection to the control panel. With features like an explosion-proof touchscreen tablet that lets you dial in all the settings to match your style, complete with data tracking.
Our 20.EX smoothly shuttles cryogenic ethanol straight from the tank to filtration or solvent recovery, making it a real time-saver. It’s got a direct line to a circulating chiller to keep things at -40ºC during extraction. Designed for a safe, one-person show with a no-fuss approach to loading and unloading.
The 20.EX offers exceptional capabilities, enabling the processing of approximately 500 lbs. of biomass per 8-hour shift. Harnessing cutting-edge technology, all operational parameters are masterfully controlled via an explosion-proof touchscreen tablet, ensuring precision at your fingertips. With a jacketed tank, it maintains optimal low temperatures during extraction, while boasting impressive efficiency in removing over 98% of cannabinoids and solvents.
Designed with the user’s safety in mind, it facilitates single-user operation, requiring minimal training. The incorporation of a variable frequency drive minimizes acceleration and braking times, further enhancing its performance. Crafted from premium materials, all wetted parts feature the durability of 304L and 316 stainless steel. Moreover, it effortlessly automates transfers between chilled solvent tanks, filtration processes, and falling film recovery, streamlining your workflow.
Where Safety Meets Streamlining
Designed with the user’s safety in mind, it facilitates single-user operation, requiring minimal training. The incorporation of a variable frequency drive minimizes acceleration and braking times, further enhancing its performance. Crafted from premium materials, all wetted parts feature the durability of 304L and 316 stainless steel. Moreover, it effortlessly automates transfers between chilled solvent tanks, filtration processes, and falling film recovery, streamlining your workflow.
Where Safety Meets Streamlining
Designed with the user’s safety in mind, it facilitates single-user operation, requiring minimal training. The incorporation of a variable frequency drive minimizes acceleration and braking times, further enhancing its performance. Crafted from premium materials, all wetted parts feature the durability of 304L and 316 stainless steel. Moreover, it effortlessly automates transfers between chilled solvent tanks, filtration processes, and falling film recovery, streamlining your workflow.
When we design – we have you in mind, That’s why the 20.EX is constructed in the USA using the highest quality materials, resulting in the highest quality equipment on the market. Crafted from scratch with domestic stainless steel, every inch of the 20.EX is designed with the utmost care, and backed by a Lifetime Warranty.
Lifetime
Warranty
When we design – we have you in mind, That’s why the 20.EX is constructed in the USA using the highest quality materials, resulting in the highest quality equipment on the market. Crafted from scratch with domestic stainless steel, every inch of the 20.EX is designed with the utmost care, and backed by a Lifetime Warranty.
Lifetime
Warranty
When we design – we have you in mind, That’s why the 20.EX is constructed in the USA using the highest quality materials, resulting in the highest quality equipment on the market. Crafted from scratch with domestic stainless steel, every inch of the 20.EX is designed with the utmost care, and backed by a Lifetime Warranty.
SPECIFICATIONS
EQUIPMENT |  |
|---|---|
Dimensions (approx.) | 24”W x 31”L x 33”H |
Working Area: | 18 sq. ft² |
Weight (approx.) | 1,500 lbs. |
Certifications | UL 1389 / PSI Reviewed |
TECHNICAL |  |
|---|---|
Solvents | Ethanol or Pentane
(must be specified prior to delivery) |
Variable Frequency Drive | 1850 RPM |
Volume | 13–15 gallons of alcohol per run |
Capacity | Up to 20 lbs. per cycle |
Cycle Time | 15–20 minutes |
Temperature Rating | -40° C |
Rating | C1D1 centrifuge / C1D1 umbilical control panel / C1D1 tablet / UL / GMP |
TECHNICAL | |
|---|---|
Solvents | Ethanol or Pentane
(must be specified prior to delivery) |
Variable Frequency Drive | 1850 RPM |
Volume | 13–15 gallons of alcohol per run |
Capacity | Up to 20 lbs. per cycle |
Cycle Time | 15–20 minutes |
Temperature Rating | -40° C |
Rating | C1D1 centrifuge / C1D1 umbilical control panel / C1D1 tablet / UL / GMP |
Highights
- Process approx. 500 lbs. biomass per 8 hr. shift
- Rated for use in C1D1 space with umbilical connection to control panel
- All operating parameters controlled remotely using explosion-proof touchscreen tablet
- Jacketed tank for maintaining cold temperatures during extraction
- Highly efficent removal of 98%+ cannabinoids and solvent
- Designed for safe single-user operation with minimal training
- Variable frequency drive shortens acceleration and braking time
- All wetted parts are 304 L and 316 stainless steel
- Automated transfer between chilled solvent tanks, filtration and falling film recovery
Highights
- Process approx. 500 lbs. biomass per 8 hr. shift
- Rated for use in C1D1 space with umbilical connection to control panel
- All operating parameters controlled remotely using explosion-proof touchscreen tablet
- Jacketed tank for maintaining cold temperatures during extraction
- Highly efficent removal of 98%+ cannabinoids and solvent
- Designed for safe single-user operation with minimal training
- Variable frequency drive shortens acceleration and braking time
- All wetted parts are 304 L and 316 stainless steel
- Automated transfer between chilled solvent tanks, filtration and falling film recovery
Highights
- Process approx. 500 lbs. biomass per 8 hr. shift
- Rated for use in C1D1 space with umbilical connection to control panel
- All operating parameters controlled remotely using explosion-proof touchscreen tablet
- Jacketed tank for maintaining cold temperatures during extraction
- Highly efficent removal of 98%+ cannabinoids and solvent
- Designed for safe single-user operation with minimal training
- Variable frequency drive shortens acceleration and braking time
- All wetted parts are 304 L and 316 stainless steel
- Automated transfer between chilled solvent tanks, filtration and falling film recovery
